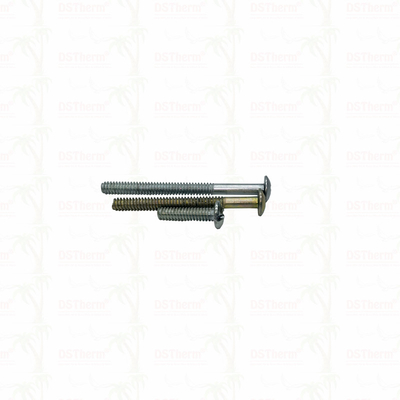

Brass / Chrome Plated Valve Stem Extension Sleeve 1/2" - 1" Customized Size

Brass / Chrome Plated Valve Stem Extension Sleeve 1/2" - 1" Customized Size

Product Size

Specification

Key Functions

1. Operational Extension

   • Extends valve stem length to adapt to confined or hard-to-reach installations (e.g., behind walls, underground pipelines).

   • Enables safe operation in high-temperature or hazardous environments by relocating the actuator/handwheel to accessible areas.

2. Compatibility Enhancement

   • Bridges mismatched interfaces between valves and actuators in retrofit projects.

   • Supports standardized valve systems (ISO 5211, DIN 3338) for multi-brand compatibility.

3. Corrosion & Wear Resistance

   • Chrome plating provides a protective layer against abrasion, chemical exposure, and oxidation, extending service life in humid or corrosive conditions (e.g., marine, chemical plants).

Structural Features

1. Material & Coating

   • Body: High-grade brass (C36000/C37700) for superior machinability and pressure resistance (up to 1.6 MPa).

   • Surface: Electroplated chromium (10–15 μm thickness) for enhanced hardness (800–1000 HV) and smooth operation.

2. Precision Engineering

   • Internal splines/hexagonal bore to prevent stem rotation during operation.

   • Threaded ends (NPT/BSPP) with PTFE sealing tape grooves for leak-proof connections.

3. Customizable Design

   • Available in standard sizes (1/2", 3/4", 1") with on-demand customization for:

     • Anti-vibration slots or thermal expansion joints.

     • Flanged ends for bolted systems.




Competitive Edge

• Tailored Solutions: DSTHERM’s CNC machining allows ±0.1 mm dimensional accuracy for niche applications.

• Cost Efficiency: Chrome plating reduces maintenance frequency by 40% compared to uncoated brass sleeves.

Applications

Example: A Dubai hotel retrofit project required extending 120 bathroom mixing valves through concrete walls. DSTHERM supplied 300 mm chrome-plated sleeves with M30×1.5 threads, enabling tool-free installation and eliminating post-construction leakage.

For custom specifications, provide valve type (ball/gate/globe), stem diameter, and environmental conditions (temperature/pressure/media).
(Note: Technical parameters can be expanded based on DSTHERM’s actual product data.)

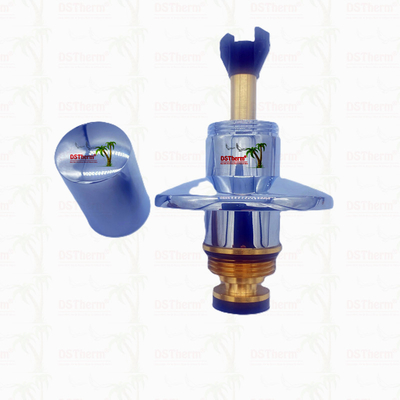

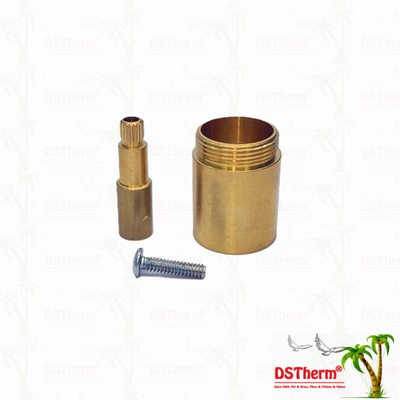

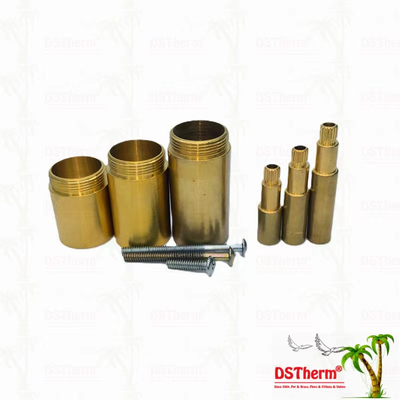

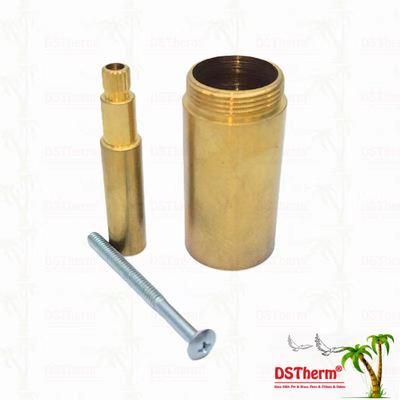

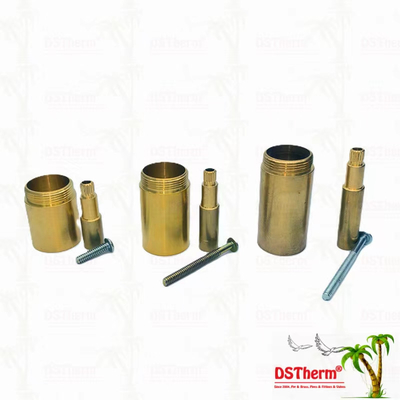

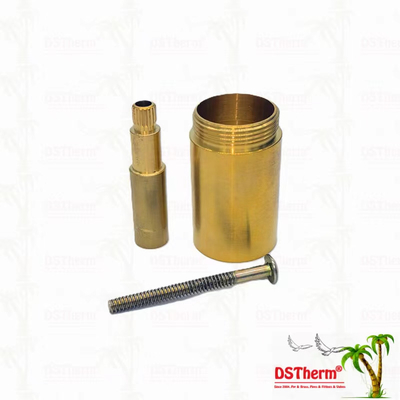

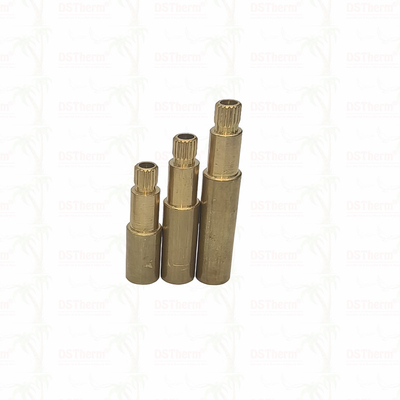

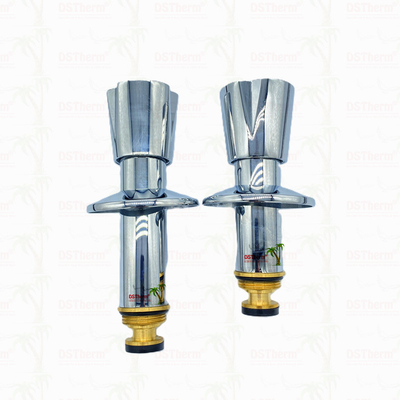

Actural Pictures

Packaging & Delivery

Packaging Details:
(1) Export safe box.
(2)Inner boxes with filler.
(3)Outpackage is high quality cartons.
(4)Custom package.

What can we do for you?

1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. OEM or ODM is available.
6. Some extra accessories can be supplied.
7.The larger quantity you order,the more competitive prices you'll get.
8. Necessary Certificates can be supplied.

Manufacturing Pipes, Fittings, Valve. (Ppr Pipes,Ppr Fittings,Valves & Brass Fittings,Brass Valves)
With Standard Raw Materials, Supplying Better Quality Products.
1. With over 20 years experience, exporting to more than 35 countries.
2. Full Sizes, Sizes : 1/2' to 4' with CW617N & Cu58-3 etc.
3. 200 PCS CNC machines including: Hot Forged Rough Cast Machines+Brass CNC Automatic Machines + Ppr Injection Machines.
4. Customized logo and DSTHERM.

We Will Be Your The Better Choice!
